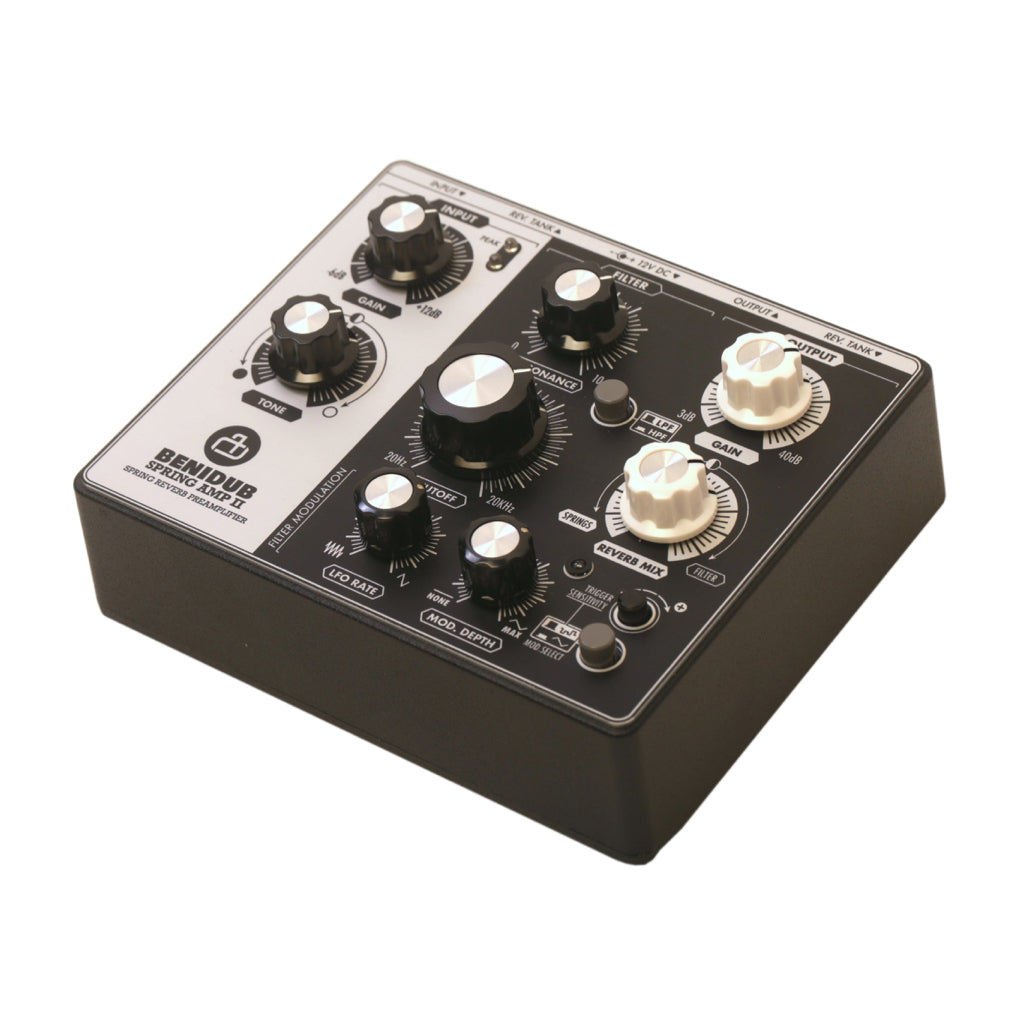

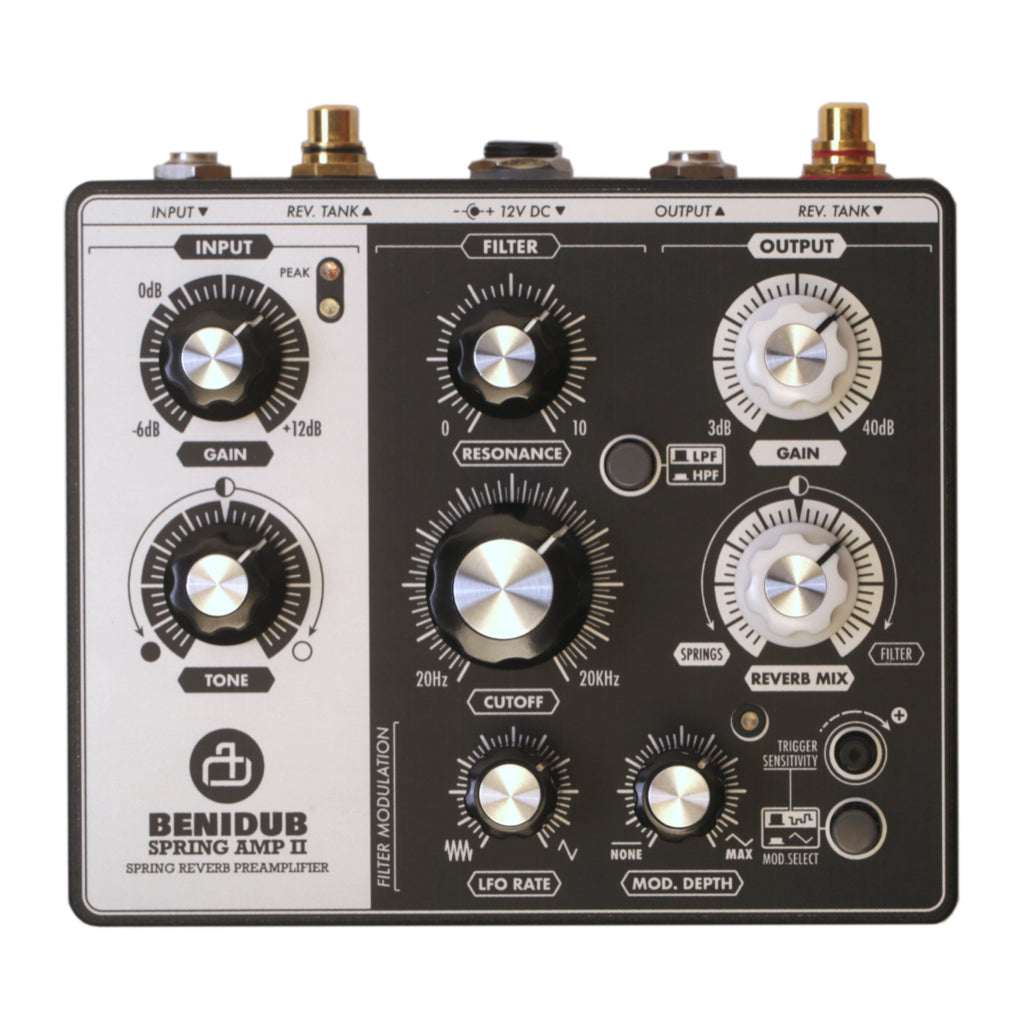

Benidub SPRING AMP II - Spring Reverb Amplifier
Benidub SPRING AMP II - Spring Reverb Amplifier
The Spring Amp II combines an HiFi amplifier for spring reverb tanks with a 2 poles VCF and relative modulation section. It works as an interface between standard audio mixers and spring reverb tanks made for guitar amps.
- 7.5W constant current amplifier, drives 8ohm input reverb tanks to the maximum volume and best trebles response.
- Extra low noise reverb pick up amplifier.
- 2xLED VU-meter monitors the power amplifier level to easily detect overload.
- 12dB/oct Resonant Voltage Controlled Filter, selectable HPF or LPF response.
- Triangular wave or Sample & Hold Filter Modulation
- Crossfader between filtered and un-filtered reverb output signal.

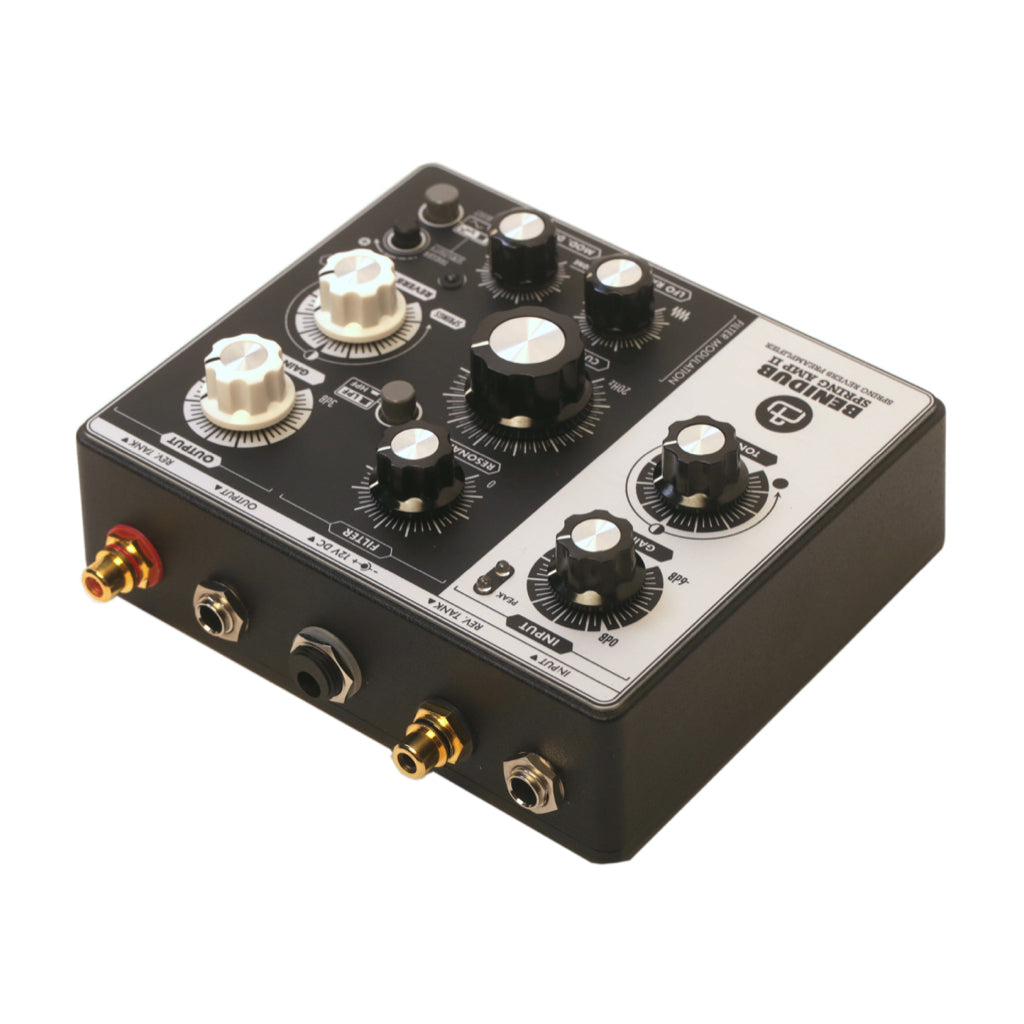

- Balanced input 1/4” TRS Jack (15Kohm electronically balanced).
- Balanced output 1/4” TRS Jack (47R impedance balanced)
- 12VDC 1A Power Supply (2.1mm x 5.5mm barrel connector, center positive)
- Size: 150mm x 120mm x 60mm
- Weight: 580gr
External Power Supply included
** EXTERNAL REVERB TANK NOT INCLUDED **
(see user manual below for more details)
* Accutronics Spring Reverb Tank 9AB3C1B Available
* Recommended Dual RCA cable available
